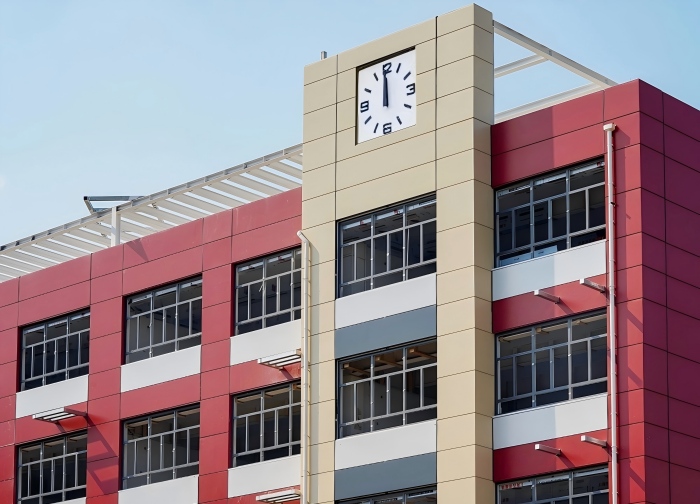

An insulated panel can have excellent thermal and structural properties in the laboratory, yet the finished building may still suffer from air leakage, water ingress, condensation, or local cold spots. In many cases, the problem is not the panel itself. It is the joint between panels.
This is especially common in large industrial buildings where hundreds or even thousands of panel joints repeat across the façade or roof. A small detailing or installation error at one joint may seem minor, but repeated across the envelope it can become a significant performance issue.
Most leaks do not begin in the middle of the panel face.
They usually appear where panels meet, where flashings connect, or where the envelope changes direction. These locations have to manage several things at once: rainwater, wind pressure, thermal movement, installation tolerance, and the need to keep the joint compressed and aligned.
A well-designed insulated wall panel system does more than place two metal skins next to each other. The joint should guide water away from the interior while maintaining a reliable air seal behind the outer weather line.
Problems start when one of those functions is interrupted. A panel may not be fully engaged. The support structure may be slightly out of line. A seal may be discontinuous. A flashing detail may allow water to remain in the joint instead of draining outward.
In these cases, adding more sealant after the fact often treats the symptom rather than the cause.
The central area of an insulated panel is usually thermally efficient because the insulation layer is continuous. The joint is different. At that point, the geometry changes and more conductive materials may come closer together.
Metal edges, fasteners, support members, and compressed joint components can create localized heat-transfer paths.
On an insulated roof panel, these linear thermal bridges can repeat across every panel connection. Even if each individual joint has only a small effect, the total impact can become meaningful over a large roof.
The result may show up as higher heat loss, lower internal surface temperatures, or condensation risk in cold conditions.
This is why thermal performance should not be judged only from the declared conductivity of the core material.
The panel skins themselves are effectively airtight. Air leakage normally occurs at the connections.
If the inner seal is incomplete or poorly compressed, pressure differences can drive air through the joint. In a heated or cooled building, that movement carries energy with it. More importantly, it can also carry moisture.
When warm, humid air reaches a colder surface inside the joint, condensation may occur even though there is no visible water leak from outside.
This is one reason airtightness problems are sometimes misdiagnosed as insulation problems.
The insulation may be performing correctly. The actual issue is that air is bypassing it through repeated gaps in the envelope.
For this reason, installing insulated metal panels should be treated as a continuity task. The air-control layer has to remain connected around joints, corners, openings, and transitions rather than being solved panel by panel.
A good joint has clearly separated functions.
The outer part should manage weather exposure and drainage. The inner part should maintain air-control continuity. Between them, the joint geometry should keep the insulation edge protected and allow adjacent panels to engage consistently.
That sounds simple, but site conditions make it more difficult.
| Joint Issue | Likely Result |
|---|---|
| Incomplete panel engagement | Air leakage or reduced weather resistance |
| Misaligned support structure | Uneven joint compression |
| Discontinuous internal seal | Condensation or energy loss |
| Poor drainage path | Water remains inside the connection |
| Excessive metal continuity | Stronger thermal bridge |
| Incorrect fastener position | Local distortion around the joint |
| Inconsistent flashing | Leakage at terminations and transitions |
The important point is that each joint should work as a small part of a continuous envelope, not as an isolated connection.
More force does not necessarily create a better joint.
Panels should be installed to the engagement condition intended by the manufacturer. If installers push the panels too aggressively, they may distort edge geometry or displace seals. If engagement is incomplete, the joint may never reach the compression needed for reliable air and water control.
Structural tolerance plays a major role here.
If the support frame is not straight, installers may be forced to choose between following the structure and keeping the panel joints consistent. That can lead to one side of a joint closing properly while another remains partially open.
For large façades, a small alignment error can accumulate across many panels. By the time the installation reaches the end of the elevation, the final joints may become noticeably harder to close.
The panel face is highly resistant to water, but the complete envelope is only as waterproof as its joints and terminations.
Rain does not need to pass through the center of the panel to enter the building. It can move through poorly sealed laps, around fasteners, behind flashings, or into improperly finished roof-to-wall transitions.
This is why sandwich panel waterproofing is more about system detailing than surface coating.
A metal facing can remain completely intact while water still enters through an adjacent connection.
Good waterproofing therefore depends on drainage paths, joint geometry, flashing sequence, and installation accuracy.
Roof joints deal with water under more severe conditions.
On a wall, gravity generally helps water move downward and away. On a roof, water can remain around laps for longer periods, especially where drainage is slow or ponding occurs.
Wind can also push rain against the joint, while thermal movement across a large roof creates repeated expansion and contraction.
This means roof-panel joints have to remain stable while the surrounding sheet moves.
Fastener spacing, panel length, roof slope, and lap design all affect how well the system manages this movement.
The lower the roof slope, the less tolerance there is for poor joint detailing.
A fire-rated panel system is tested as a complete assembly, which includes the joints.
The insulation core may perform well under heat, but the joint remains a discontinuity in the panel. Heat, pressure, and structural movement can concentrate at that location.
If the joint design used on site differs from the tested configuration, the actual fire performance may not match the expected classification.
This is especially relevant for mineral wool systems, where buyers sometimes focus heavily on the non-combustible core while paying less attention to how adjacent panels connect.
The fire-resistant envelope is not created by individual boards. It is created by the assembled wall or roof.
Straight panel joints are repeated details. Once the installation team understands them, they can usually be reproduced consistently.
Corners and openings are different.
At a window, door, parapet, roof edge, or service penetration, several envelope functions meet in a small area. Insulation, air sealing, waterproofing, flashing, and structural support all have to remain continuous around the interruption.
This often requires field cutting and additional components.
The more site modification involved, the greater the opportunity for inconsistency.
A PUF sandwich wall panel, mineral wool panel, or other insulated system may perform well across the main wall area, yet still develop leakage or condensation around badly detailed openings.
These areas deserve design attention before the panels arrive on site.
Some joint defects are immediate. Others need time to become visible.
Thermal expansion and contraction can gradually open weak connections. Sealants may be stressed repeatedly. Wind movement can work on poorly secured flashings. Water may enter only during rain from a certain direction.
Condensation problems can also be seasonal.
A joint may appear satisfactory during summer but develop moisture issues when winter temperatures create a much larger difference between indoor and outdoor conditions.
This is why site acceptance based only on visual inspection can miss important envelope problems.
For critical projects, airtightness testing, water testing, or thermal imaging can reveal issues that are not obvious from appearance alone.
The supporting structure should be reviewed before the first panel is fixed.
If the frame is outside tolerance, the panel joints are likely to suffer later.
Installers should also understand where seals are positioned, how panel engagement is checked, which fastener pattern applies, and how transitions around corners and openings are meant to be completed.
On complicated projects, a small mock-up can be extremely useful.
It gives the design team, manufacturer, and installer a chance to confirm that the detail works in practice before it is repeated across the entire building.
This is often far more effective than trying to solve the same problem after hundreds of panels have already been installed.
The center of an insulated panel is usually the most predictable part of the envelope. The joint is where material performance, structural tolerance, manufacturing accuracy, and workmanship all meet.
That is why panel joints deserve more attention than they often receive.
A strong building envelope depends on continuous insulation, reliable air sealing, controlled drainage, correct engagement, and properly detailed transitions. If any of those functions break at the joint, the performance of the whole wall or roof can suffer.
For industrial buildings, the safest approach is to review the panel connection as part of the complete envelope design rather than assuming that good panel specifications will automatically produce good building performance.
