Metal Surface Waterproof Roofing Sandwich Panel
Engineered for superior waterproofing performance, this panel features a durable metal surface and a high-quality insulating core designed to prevent water infiltration. The insulated metal sandwich panels provide enhanced protection against harsh weather conditions, making them ideal for roofing in areas with high rainfall or moisture exposure.

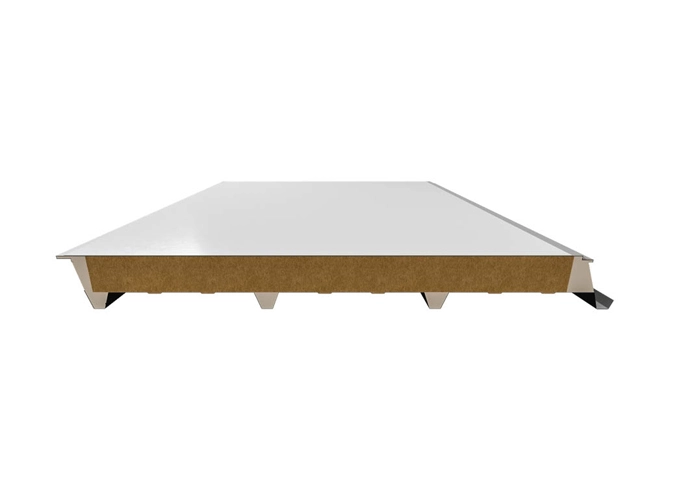

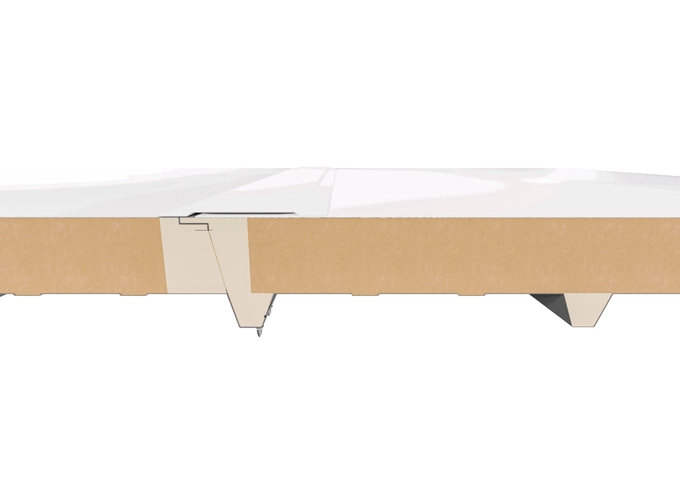

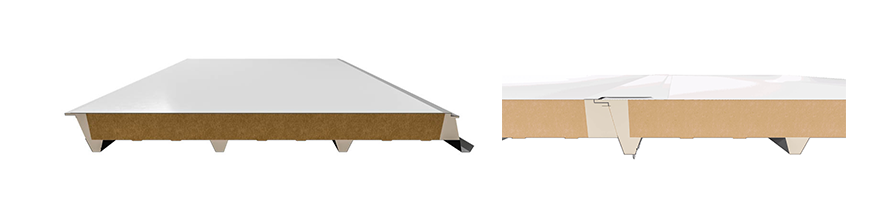

| HXY-FD-R-DECKs36 | ||||||
 | ||||||
| Unit:mm | ||||||
| Thickness | Width | Core Material | Surface Materia | Raw Material Width | Surface Materia | Raw Material Width |
| 50-150 | 1000 | 333.32 | 36 | PU+ROCK | Steel /G250-350 Outer：0.5-0.8 Inner：0.5-0.8 | +200 +70 |

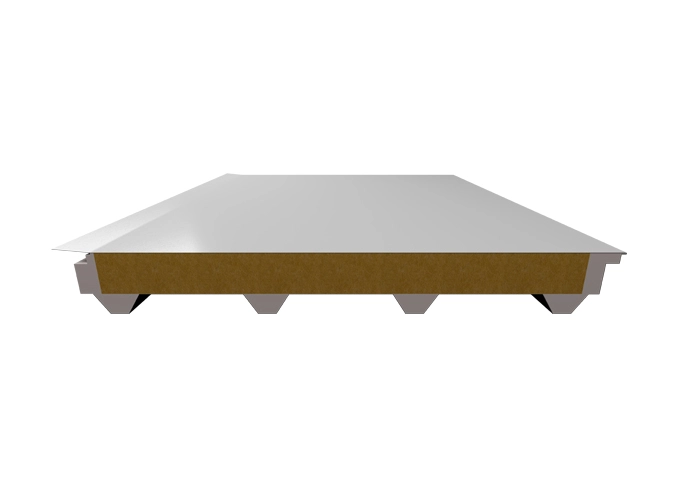

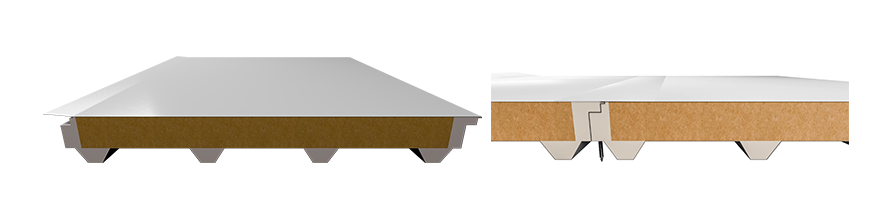

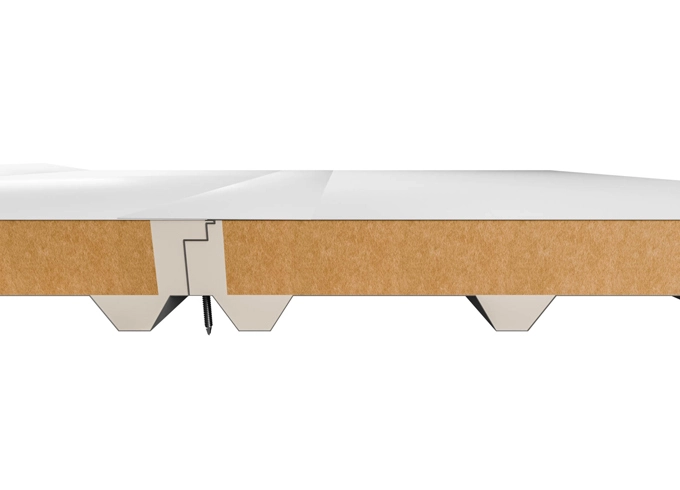

| HXY-FD-R-DECKs41 | ||||||
| ||||||
| Unit:mm | ||||||
| Thickness | Width | Core Material | Surface Materia | Raw Material Width | Surface Materia | Raw Material Width |
| 50/75/ 100 | 1000 | 292 | 41 | PU+ROCK | Steel /G250-350 Outer：0.5-0.8 Inner：1.2-1.8 | +250 +100（TPO） |
Uses lightweight thermal insulation material, Rock Wool-120K, with a thermal conductivity of 0.040 and a product weight of 15-30kg/m².
Inner and outer color-coated steel plates are selected based on environmental needs, with coatings such as PE/SMP/HDP/PVDF. Paired with AZM coating for over 30 years of warranty.
Factory-prefabricated TPO waterproof membrane fully meets the national standard Grade-A waterproofing requirements.
Welcome to contact us for anything you want to know.
